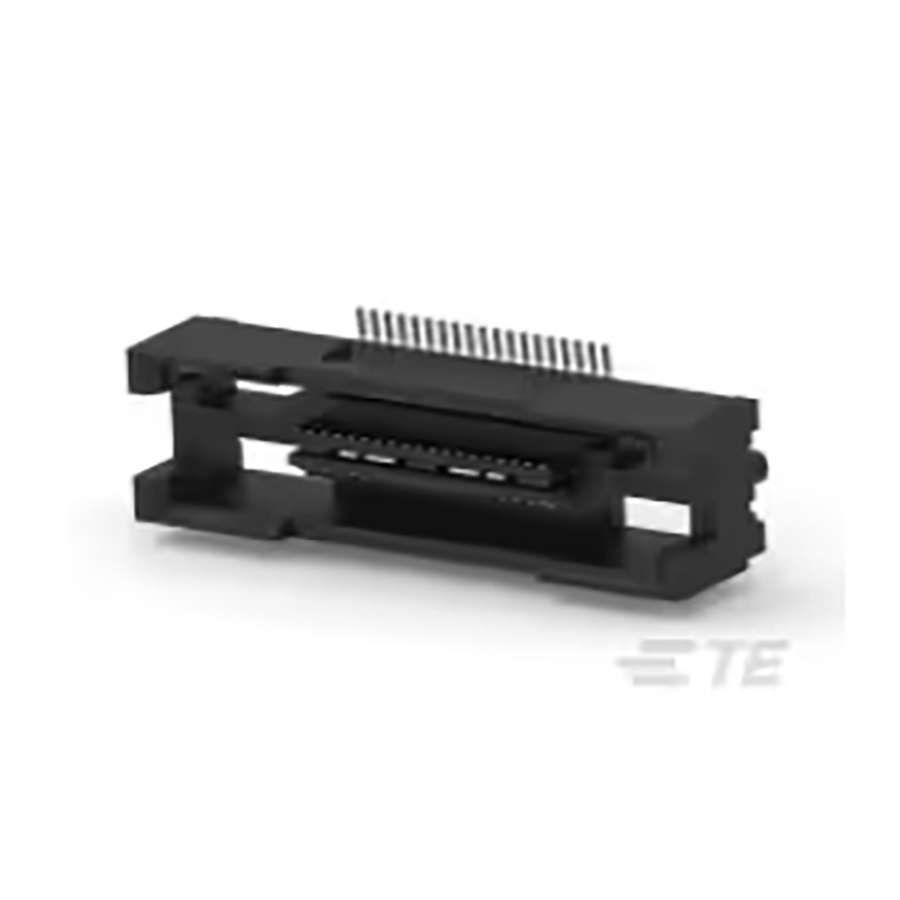

2-5767004-2
Manufacturer:
TE Connectivity
Mfr.Part #:
2-5767004-2
Datasheet:
Description:
Board to Board Connectors PCB Connector, Receptacle, Socket Number of Positions:38 Number of Rows:2 Row Spacing:5.79 mm Pitch:635 µm
| Parameter | Value |
|---|---|
| Length | 25.4 mm |
| Width | 6.9 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 30 V |
| Number of Pins | 38 |
| Height | 5.9944 mm |
| Packaging | Reel |
| Voltage Rating | 30 V |
| Depth | 8.72 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Non-Compliant |
| Insulation Resistance | 2 MΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Tin, Gold |
| Contact Material(Contact Finish) | Copper |
| Pitch | 635 µm |
| Current Rating | 11.5 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA, UL |
| Orientation | Vertical |
| Operating Supply Voltage | 30 V |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Black |
| Gender | Receptacle |
| Number of Contacts | 38 |
| Data Rate | 10 Gbps |
| Connector Type | Connector, Receptacle, Socket |
| Number of Positions | 38 |
| Number of Rows | 2 |
| Row Spacing | 5.79 mm |
| Insulation Material | Polyester |
| Housing Material | Plastic |
| Contact Style | Socket |
| Contact Resistance | 10 mΩ |
| Max Voltage Rating (AC) | 30 V |
| Contact Current Rating | 11.5 A |
| Housing Color | Black |
| Plating | Gold |
| PCB Mounting Orientation | Vertical |
| PCB Thickness | 1.57 mm |
| Plating Thickness | 3.81 µm |
| Number of Power Positions | 1 |
| Stackable | No |
| Stack Height | 2.5 mm |
| Mated Stacking Heights | 22.86 mm |
| Underplate Material | Nickel |
| Number of Signal Positions | 38 |
| Schedule B | 8536694040 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Sealable | No |
| Contact Finish Thickness - Mating | 760 nm |
| Mating Alignment | Without |
| Differential Signaling | Yes |
| Number of Columns | 19 |
| PCB Mount Retention | With |
| PCB Mount Alignment | With |
Stock: 761
Distributors
pcbx
pcbxUnit Price$7.86643
Ext.Price$7.86643
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $7.86643 | $7.86643 |
| 10 | $6.91325 | $69.13250 |
| 25 | $6.40406 | $160.10150 |
| 50 | $5.93238 | $296.61900 |
| 100 | $5.49544 | $549.54400 |
